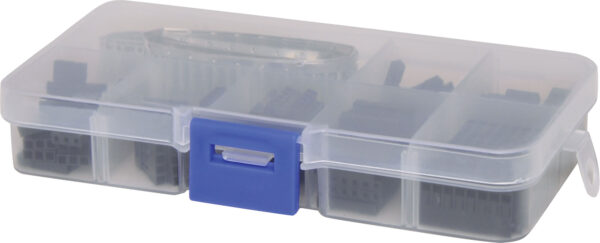

310pc 2.54mm Header Connector Kit

$14.95 (AUD)

JST connectors are electrical connectors manufactured to the design standards originally developed by J.S.T. Mfg. Co. (Japan Solderless Terminal). JST manufactures numerous series (families) and pitches (pin-to-pin distance) of connectors.

1 in stock

Qty Discount
2 - 4 5%
5 - 9 8%
10 + 10%
SKU: TS-K005 Category:


We Ship World Wide We are an Australian owned and Based Company. We are an Australian owned and Based Company. We are an Australian owned and Based Company. We are an Australian owned and Based Company. We are an Australian owned and Based Company. We are an Australian owned and Based Company. We are an Australian owned and Based Company.

Calculate Shipping - shipping options and estimates can be found in your shopping cart.

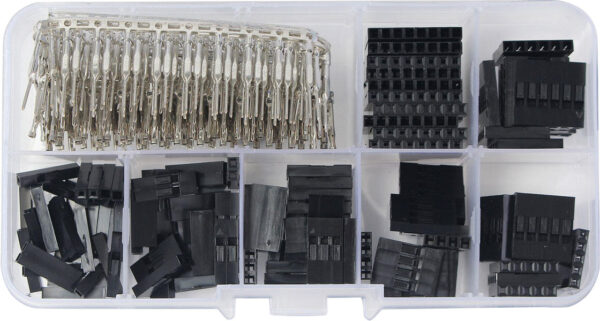

KIt Contains:

310pc 2.54mm Header Connector Kit

  • 1×1 pole 2.54mm : 30pc
  • 1×2 pole 2.54mm : 20pc
  • 1×3 pole 2.54mm : 20pc
  • 1×4 pole 2.54mm : 10pc
  • 1×5 pole 2.54mm : 10pc
  • 1×6 pole 2.54mm : 10pc
  • 1×8 pole 2.54mm : 10pc
  • Female Pin connector crimp: 100pc
  • Male Pin connector crimp: 100pc

Development  Resources: demo codes, schematics, datasheets, etc 310pc 2.54mm Header Connector Kit

End-users and 3rd-party sellers on eBay often describe connectors by their wrong name thus perpetuating confusion of the exact series of a specific connector. Unfortunately, it is very common in blogs and websites to incorrectly name a specific connector only by the name of the manufacturer.

To minimize confusion, it is best to describe a connector using: the manufacturer’s name, exact connector series, and optionally the pitch, such as “JST-XH” or “JST-XH-2.50mm” or “2.50mm JST XH-series” or other variations.

The official J.S.T. Co. website has a tool that allows users to check certain models for their authenticity and specifications.

Note: Some 2.50 mm parts are incorrectly sold on the internet as 2.54 mm (0.100 in), and the 1.25 mm parts as 1.27 mm (0.050 in).

A huge assortment of single-row header connectors for making your own custom length wiring harnesses or prototyping cables. Pack contains a variety of female connector housings in different sizes plus male and female pin connector crimps. This kit is suitable for Raspberry Pi and Arduino projects, as well as general electronics use. AWG Size: 28AWG

Reference for Arduino and reference to all matters

Ardunio from Wikipedia

Notes:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angle and display monitor.

Other Related Products

Workshop Package Kit for Arduino - 02
Workshop Package Kit for Arduino – 02

The Arduino Workshop Kit with the Arduino Uno controller board comes with a selection of all the components/parts necessary to participate in an introductory Arduino Workshop.

See Support Items



Weight 0.06120 kg
Dimensions 13 × 7 × 2.1 cm

Product Applications

A huge assortment of single row header connectors for making your own custom length wiring harnesses or prototyping cables. Pack contains a variety of female connector housings in different sizes plus male and female pin connector crimps. This kit is suitable for Raspberry Pi and Arduino projects, as well as general electronics use. AWG Size: 28AWG
