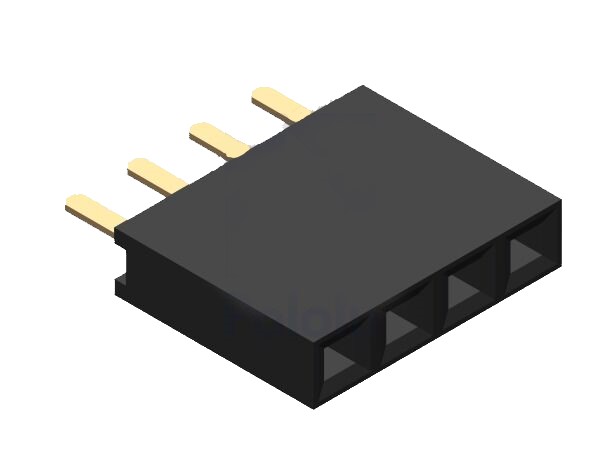

4-Pin 2.54mm Pitch Single Row Female Header

Name: 4-Pin 2.54mm Pitch Single Row Female Header
SKU: TS-P185
Availability: InStock

2.54mm Pitch Single-Row Female Headers are commonly used in electronics for prototyping and PCB-to-cable conversion, especially on breadboards and PCBs.

$3.75

20 in stock

This item: 4-Pin 2.54mm Pitch Single Row Female Header

20 in stock

$3.75

Female Header: 4-Pin, Straight 2.54mm 4

1 × Female Header: 4-Pin, Straight 2.54mm 4

500 in stock

$0.40

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.56
Qty Discount	10 +	8% $3.45

SKU: TS-P185

Categories:2.54 Single Row, Female-Straight, PCB Headers

Description

Additional information

Applications

Support & Utility

Q & A

4-Pin 2.54mm Pitch Single Row Female Headers These are commonly used in electronics for prototyping, especially on breadboards and PCBs.

Specifications:

Pack Qty: 12
Female
Number of Pins: 4
Pin Spacing: 0.1″ (2.54 mm)
Height: 8.5mm(Female mount)
Length: 2.5m (male pins)
Single row
Maximum current: 3A
Contact Resistance: 20Mohm
Contact Retention Force: 500Gf Min
Dielectric Withstanding Voltage: 500V Ac(rms) for 1 minute

Package Includes:

12pcs 4-Pin 2.54mm Pitch Single Row Female Header
