CR2032/CR2025 Flat Coin Cell Holder PCB pins
$1.85 – $3.25 (AUD)
They are a simple Holder that holds a 20mm coin cell battery (such as a CR2032 or CR2025)
|
3V Lithium Button Cell Batteries
$2.50 – $17.95 (AUD) Options |
Calculate Shipping - shipping options and estimates can be found in your shopping cart.

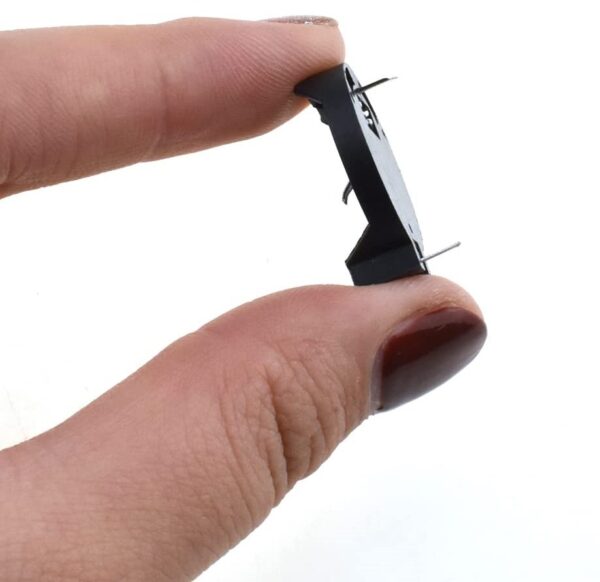

CR2032/CR2025 Flat Coin Cell Holder PCB is a simple board that holds a 20mm coin cell battery (such as a CR2032 or CR2025)
Specifications:
- Housing: Nylon66+30%GF, UL94V0 Black colour
- Contact: Phosphor Bronze 0.25mm thick Nickel-plated
- Current Rating: 0.5A DC
- Voltage Rating: 12V DC
- Contract Resistance: 30mΩ Max
- Insulation Resistance: 100MΩ Min
- Temperature Range : -40°C to +80°C
- Humidity: 40°C and 90% to 95% RH for 96 hrs.

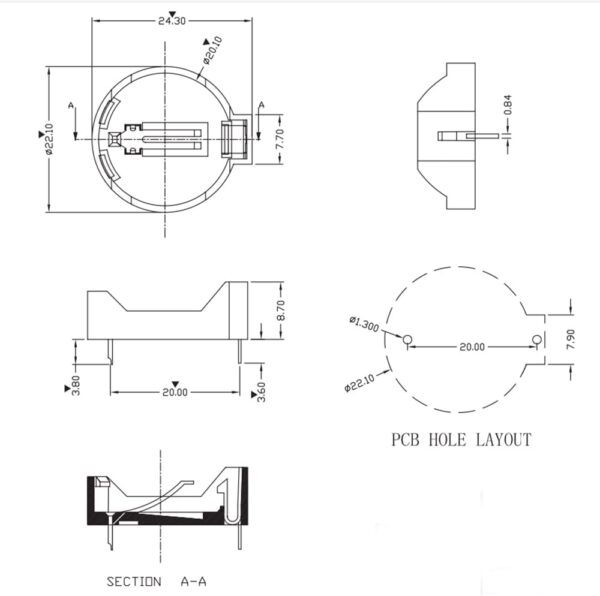

- Size 24.30mm x 8.7mm x 21.10mm
Package included: CR2032/CR2025 Flat Coin Cell Holder 5 or 10 pack
Check out our On Sale and Clearance Items
Development Resources: Demo Codes, Schematics, Datasheets, Etc
Hackaday serves up Fresh Hacks Every Day from around the Internet.
Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
Where the world builds software
Raspberry Pi Foundation What would you like to make today?
Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing lights, angles and display monitors.
| Weight | 0.0050 kg |
|---|---|
| Dimensions | 6 × 9 × 1 cm |
| Pack Qty | 5 Pack, 10 Pack |
Product Applications
Current Product Support
| SKU | Product | Type | Download/View |
|---|---|---|---|
| CR2032/CR2025 Flat Coin Cell Holder PCB pins - CR2032 Vertical mount | Datasheet | Download |
