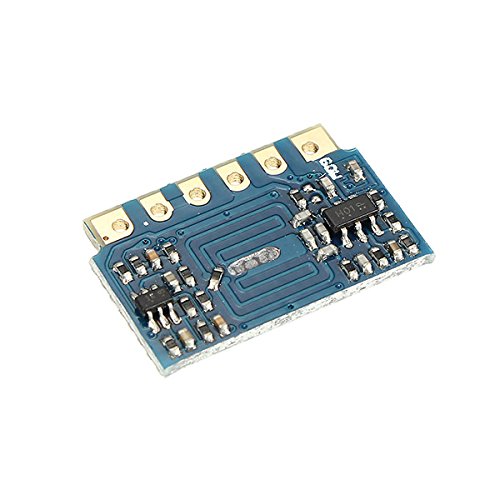

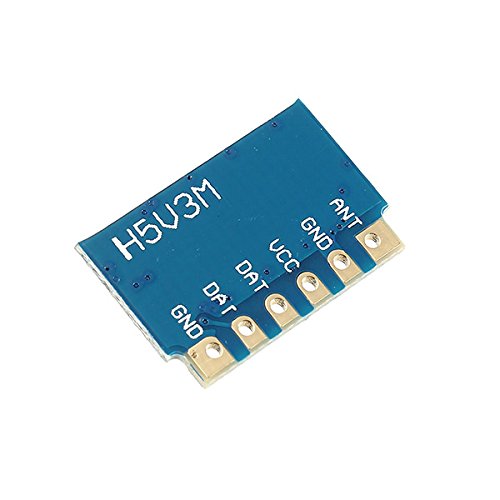

H5V3M 315mhz RF Wireless Receiver Module

Name: H5V3M 315mhz RF Wireless Receiver Module
SKU: TS-W062
Availability: InStock

These modules are commonly used for remote control systems, Wireless data Transmission, home Automation, and other RF communication applications. ASK Superheterodyne Wireless Receiver Module

$5.95

4 in stock

This item: H5V3M 315mhz RF Wireless Receiver Module

4 in stock

$5.95

ESP-12E ESP8266 Serial WIFI Module

1 × ESP-12E ESP8266 Serial WIFI Module

8 in stock

$7.95

ESP01/01S Breakout Breadboard Adaptor for ESP8266 WiFi

1 × ESP01/01S Breakout Breadboard Adaptor for ESP8266 WiFi

11 in stock

$2.95

NodeMCU with ESP8266/cp2102 Wifi Development Board

1 × NodeMCU with ESP8266/cp2102 Wifi Development Board

8 in stock

$10.95

ESP8266 ESP-01 ESP-01S DS18B20 Temperature Humidity Sensor Module

1 × ESP8266 ESP-01 ESP-01S DS18B20 Temperature Humidity Sensor Module

14 in stock

$5.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-W062

Categories:RF Transceiver Module, Wireless Communication

Description

Additional information

Applications

Support & Utility

Q & A

The H5V3M is a type of RF (Radio Frequency) wireless receiver module that operates in the 315 MHz frequency range. These modules are commonly used for remote control systems, wireless data transmission, home automation, and other RF communication applications.

Specifications:

Modulation method: ASK / OOK (Amplitude Shift Keying / On-Off Keying)
Antenna: Usually an external wire or spring antenna(not included)
Interface: Digital output (usually connected to a microcontroller like Arduino)
Working temperature: -40~80 degrees Celsius.
Range: Line of Sight (~50-150m)*
Sensitivity: -115 dBm
Stability: Better noise rejection
Operating Voltage: 4.5- 5.5v
Operating Current: 1.9ma
Data Rate: Max 4.8kbps
Size: 10*18*2.1mm

*Depends on antenna, environment, and transmission power.

Package Includes:

H5V3M 315 MHz RF Wireless Receiver Module
