HTQFP QFN32 to DIP32 0.8/0.65mm Adapter PCB 5 Pk

HTQFP QFN32 to DIP32 0.8/0.65mm double-sided with exposed pad PCB prototype boards. All the distances between output holes are equal to an excellent assortment to meet your design demands, such as electronic experiments and DIY projects… QFP32 QFP32 PQFP LQFP Adapter Plate

$3.95

6 in stock

Add to Wishlist
HTQFP QFN32 to DIP32 0.8/0.65mm
This item: HTQFP QFN32 to DIP32 0.8/0.65mm Adapter PCB 5 Pk

6 in stock

$3.95
$3.95
8Pcs Universal Prototype Double Sided
$9.95
SOP20 SSOP20 TSSOP20 to DIP20
$4.95
Qty Discount
2 - 4 5%
5 - 9 6.5%
10 + 8%
SKU: TS-P345-1
Description
Additional information
Applications
Support & Utility
Q & A

HTQFP QFN32 to DIP32 0.8/0.65mm Adapter PCB 5 Pk

  • These PCB circuit board adapters for QFN32 QFP32 IC package with exposed pad.
  • All the distances between output holes are equal.

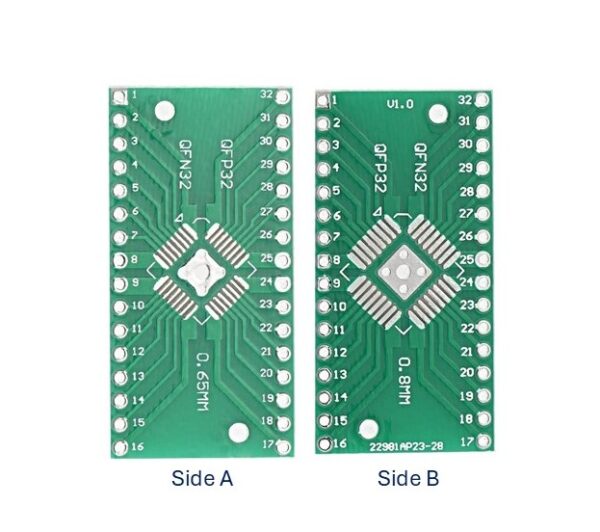

  • The PCB board has two sides. One side for pin pitch size 0.8mm pitch and 32Pin, other is 0.65mm pitch 32pin.
Specification:
  • Pin Pitch 0.8mm/0.03″, 0.65mm/0.03″
  • Fixing Hole Dia 2mm/0.08″
  • Fixing Hole Center Distance 36mm/1.4″
  • Body Size 40 x 20 x 1.5mm/1.6″ x 0.8″ x 0.06″(L*W*T)
  • Material FR-4, Electronic Part
  • Main Color Green
Package includes:

1 x HTQFP QFN32 to DIP32 0.8/0.65mm Adapter PCB 5 Pk

Development Resources: demo codes, schematics, datasheets, etc

Notes:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
