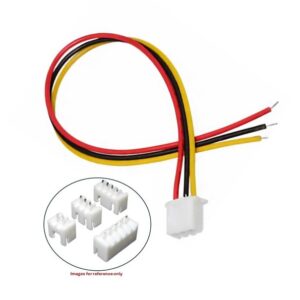

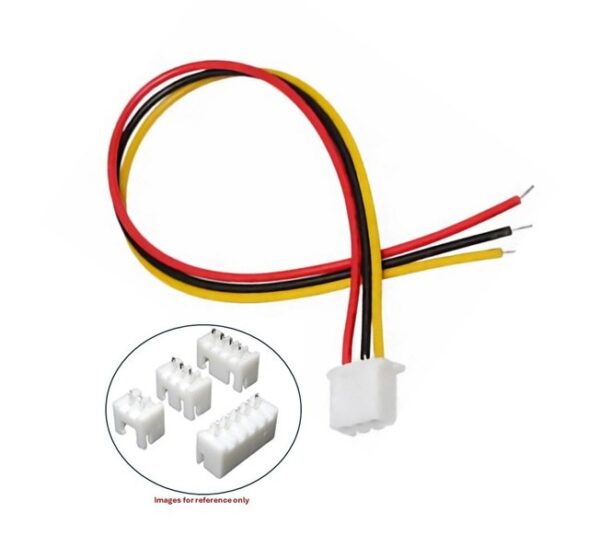

JST XH2.54 3 Pin 300mm Cable + Vertical Socket

XH connectors were developed based on the high reliability and versatility of the NH series connectors. Model: 2P/3P/4P/5P/6P/7P/8P/9P/10P, PCB Socket: Vertical or Right Angle

This item: JST XH2.54 3 Pin 300mm Cable + Vertical Socket

DC Inline Switch 2.1mm-5.5mm Male to Female Jack

1 × DC Inline Switch 2.1mm-5.5mm Male to Female Jack

86 in stock

$6.95

USB 2.0 200cm Hi-Speed Cable

1 × USB 2.0 200cm Hi-Speed Cable

19 in stock

$8.35

Alligator Clips Electrical Test Leads 10pcs

Alligator Clips Electrical DIY Test Leads 10pcs

1 × Alligator Clips Electrical Test Leads 10pcs

5 in stock

$5.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.61
Qty Discount	10 +	8% $2.53

SKU: N/A

Categories:Cable assemblies, JST Cable Assemblies, JST XH2.54 Male Female Set

Description

Additional information

Applications

Support & Utility

Q & A

This assembly combines a pre-wired 3-pin JST XH 2.54mm plug with a matching Vertical PCB socket, providing a ready-to-use wiring solution for modules, sensors, and power connections.

The 300mm leads provide ample length for routing inside enclosures, while the right-angle header offers a low-profile, side-entry connection ideal for compact boards. Commonly used in DIY electronics, RC models, LED drivers, battery packs, and control modules.

Specifications:

Model: 3P
PCB Socket: Male Vertical
Current rating: 1.5A DC
Wire Type: 22AWG
Cable Diameter: 1.6mm
Pitch: 2.54mm
Length: 30cm
Colour: Multicolour
Ambient temperature: -20 ℃ -80 ℃
Note: Cable colours can change from batch to batch

Package Includes:

JST XH2.54 4 Pin 300mm Cable + Male Vertical PCB Socket,
