LM393 Voltage Comparator Module
The LM393 is a dual independent accuracy voltage integrated circuit operated with single or else split supply. These ICs comprises two independent voltage comparators to operate from an only power supply more than a wide variety of voltages
34 in stock
![LM393 Voltage Comparator](https://temperosystems.com.au/wp-content/uploads/2021/03/LM393-Voltage-Comparator-300x300.jpg)
34 in stock

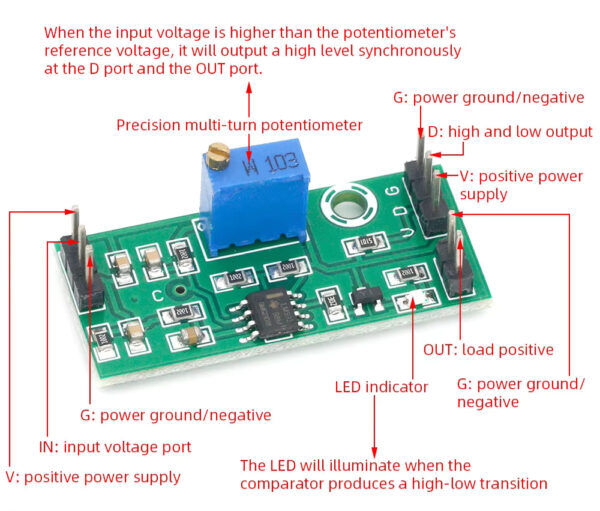

LM393 Voltage Comparator Module Adjustable Precision Signal Waveform Shaping High-Level Dual Output Led Indication
By adjusting the reference voltage adjustment potentiometer to generate the reference voltage, Sensor and pressure resistance of the voltage compared with a reference voltage, high and low levels of comparison results output.
Threshold voltage valid range 0 – (supply voltage minus 1V). For example, a 5V power supply, the reference threshold voltage effective value is 0-4V, can achieve comparison output. If the threshold voltage is greater than 4V with a 5V supply, the output will remain low for a period equal to no output
Specification:
- Power supply voltage: DC 4.5-28V
- Board size:45*17mm
- Packaging weight: 4g
Package Included:
1 x LM393 Voltage Comparator Module,
Development Resources: demo codes, schematics, datasheets, etc.
Hackaday: LM393 Voltage Comparator Module
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angle and display monitor.
Weight | 0.005 kg |
---|---|
Dimensions | 4.5 × 1.8 × 2 cm |
