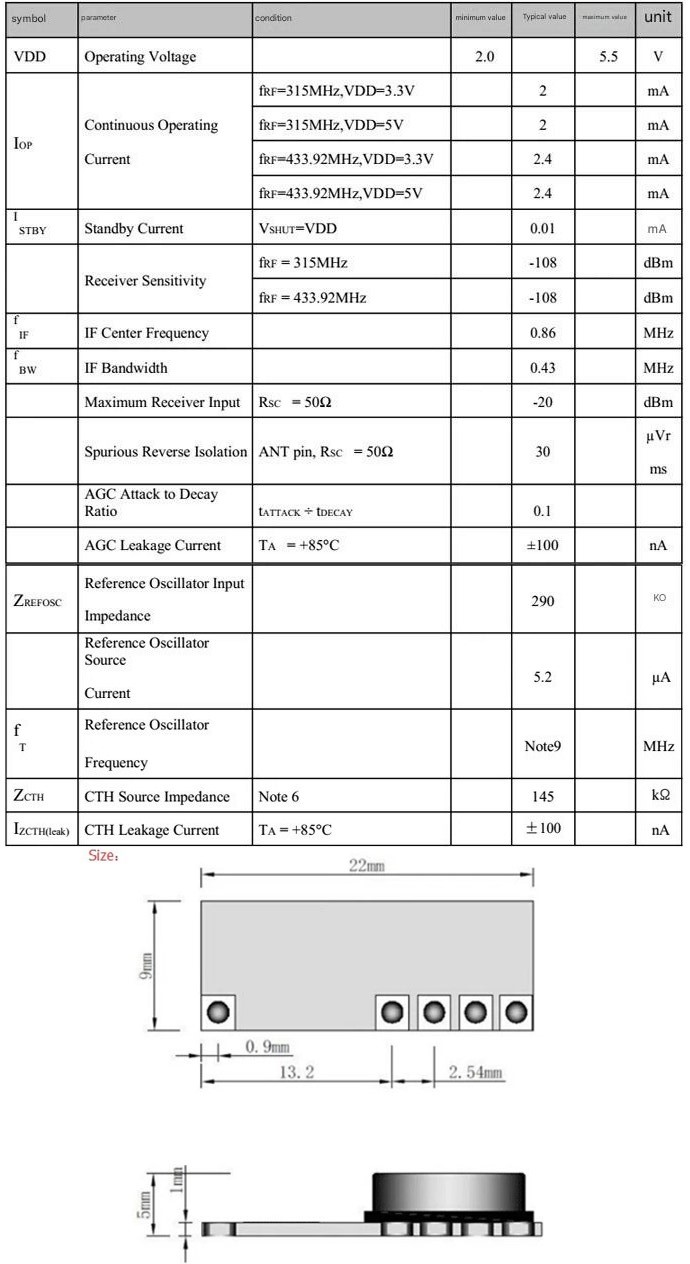

LRxxx 315mhz RF Wireless Receiver Module data sheet

LR45B 433mhz RF Wireless Receiver Module

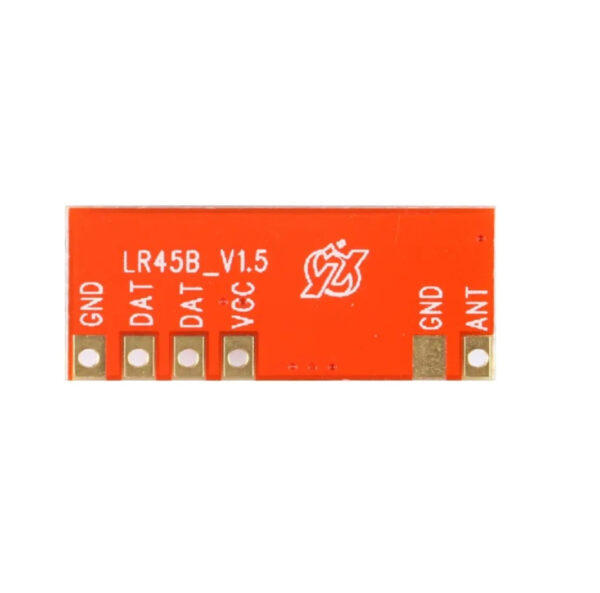

Name: LR45B 433mhz RF Wireless Receiver Module
SKU: TS-W060
Availability: InStock

These modules are commonly used for remote control systems, Wireless data Transmission, home Automation, and other RF communication applications. ASK Superheterodyne Wireless Receiver Module

$5.95

5 in stock

This item: LR45B 433mhz RF Wireless Receiver Module

5 in stock

$5.95

WIFI 2.4G 3dbi PCB Antenna

1 × WIFI 2.4G 3dbi PCB Antenna

20 in stock

$1.95

ESP8266 ESP-01 ESP-01S RGB LED Controller

1 × ESP8266 ESP-01 ESP-01S RGB LED Controller

13 in stock

$3.95

NRF24L01 2.4GHz Wireless Transceiver Module

1 × NRF24L01 2.4GHz Wireless Transceiver Module

4 in stock

$4.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-W060

Categories:RF Transceiver Module, Wireless Communication

Description

Additional information

Applications

Support & Utility

Q & A

The LR45B is a type of RF (Radio Frequency) wireless receiver modules that operate in the 433 MHz frequency range. These modules are commonly used for remote control systems, wireless data transmission, home automation, and other RF communication applications.

Specifications:

Model: LR45B ASK/OOK Receiver
Operating frequency: 433MHz
Sensitivity: Around -115 dBm
RF Chip: LR680R
Modulation method: ASK / OOK (Amplitude Shift Keying / On-Off Keying)
Data Rate: Up to 10 kbps (depending on conditions and modulation)
Antenna: Usually an external wire or spring antenna
Interface: Digital output (usually connected to a microcontroller like Arduino)
Operating Current: 2ma/2.5ma
Standby current: < 60NA in sleeping state
Operating voltage: 2~5.5,v typical 5v
Working temperature: -40~85 degrees Celsius.

*Depends on antenna, environment, and transmission power.

Package Includes:

LR43B 433mhz RF Wireless Receiver Module
