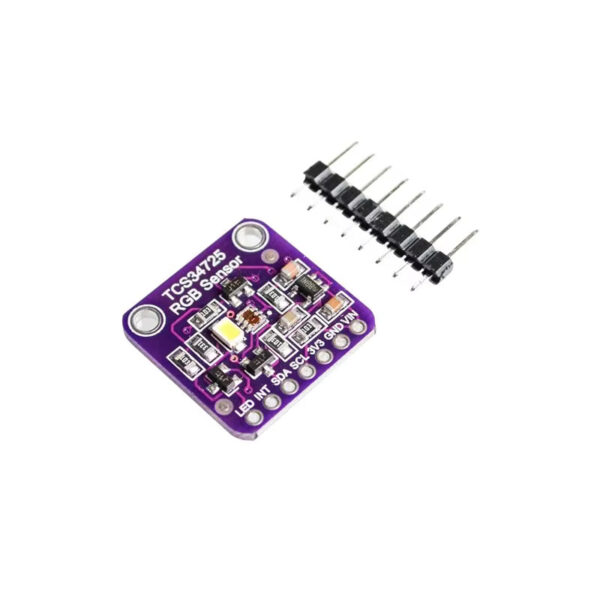

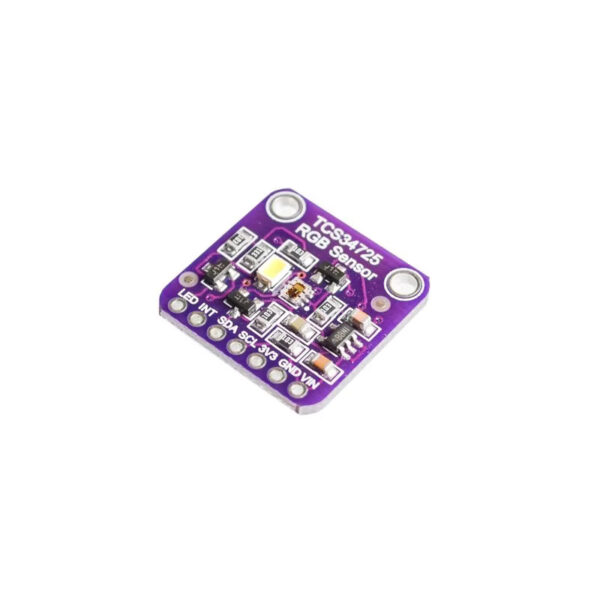

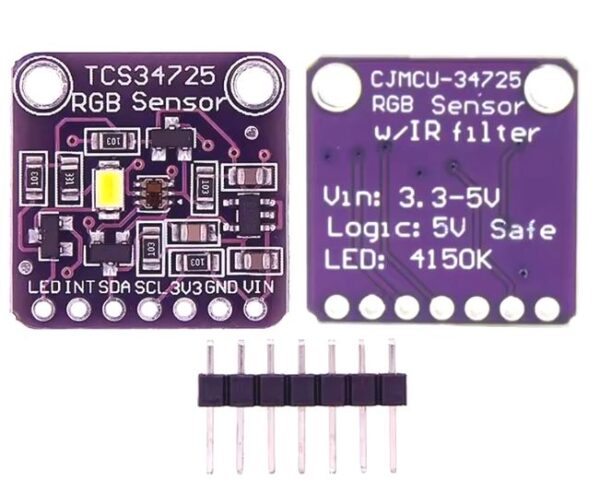

TCS34725 RGB Colour Sensor with Infrared Filter Module

TCS34725 RGB Colour Sensor with Infrared Filter Module

Name: TCS34725 RGB Colour Sensor with Infrared Filter Module
SKU: TS-P1313
Availability: InStock

The TCS34725 RGB Colour Sensor with Infrared Filter Module is based on the TCS34725 IC that can output the Red, Green, and Blue (RGB) Components of the colour it detects.

$5.95

3 in stock

This item: TCS34725 RGB Colour Sensor with Infrared Filter Module

3 in stock

$5.95

TCS3472 RGB Colour Sensor

1 × TCS3472 RGB Colour Sensor

4 in stock

$5.95

TCS3472 RGB Colour Sensor with Infrared Filter Module

1 × TCS3472 RGB Colour Sensor with Infrared Filter Module

4 in stock

$5.95

GY-33 TCS34725 Detector Module Colour Recognition Sensor

GY-33 TCS34725 Detector Module Color Recognition Sensor

1 × GY-33 TCS34725 Detector Module Colour Recognition Sensor

1 in stock

$16.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-P1313

Category:Colour Recognition

Description

Additional information

Applications

Support & Utility

Q & A

The TCS34725 RGB Colour Sensor with Infrared Filter Module contains a 3 × 4 Photodiode array, four analogue-to-digital converters (ADC) that integrate the photodiode current, data registers, a state machine, and an I2C interface.

The 3 × 4 Photodiode array comprises red-filtered, green-filtered, blue-filtered, and clear (unfiltered) photodiodes coated with an IR-blocking filter.

The four integrating ADCs convert the Amplified Photodiode currents to a 16-bit digital value. Upon completion of a conversion cycle, the results are transferred to the data registers, which are double-buffered to ensure the integrity of the data.

Specifications: RGB Light Colour Sensor Module

Chip sensor: TCS34725
Measuring range: RGB 0 – 255
Dynamic Range: 3,800,000:1
Working current: 15 mA
Low power Sleep mode: 2.5 uA
Programmable Wait State Time: 2.4 ms to > 7 Seconds
Working voltage: 3 – 5V
Storage temperature: – 40 ~ + 125 ° C
Working temperature: – 20 ~ + 85 ° C
Built-in MCU calculation colour
IIC, serial communication format
Communication Speed: up to 400 kHz
Dimensions: 20.44mm x 20.28mm
PCB Colour: Purple

Package Includes:

TCS34725 RGB Colour Sensor with Infrared Filter Module
