USB A Female No Flange Vertical Header with Dupont Breakout Board

USB A Female No Flange Vertical Header with Dupont Breakout Board

Name: USB A Female No Flange Vertical Header with Dupont Breakout Board
SKU: MC-0004
Availability: InStock

USB A Female No Flange Vertical Header with Dupont Breakout Board. These boards are commonly used for prototyping, DIY electronics projects, and testing.

$3.99

15 in stock

This item: USB A Female No Flange Vertical Header with Dupont Breakout Board

15 in stock

$3.99

USB A Vertical Female Breakout Board

1 × USB A Vertical Female Breakout Board

15 in stock

$3.15

AMS1117-1.8V DC-DC step down 1000ma

1 × AMS1117-1.8V DC-DC step down 1000ma

14 in stock

$3.99

USB 3.0 Micro Breakout Board

1 × ~~USB 3.0 Micro Breakout Board~~

Out of stock

$2.65

Monkey Cage PCB Engineering Ruler - Mini(15cm)

1 × Monkey Cage PCB Engineering Ruler - Mini(15cm)

159 in stock

$5.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.79
Qty Discount	10 +	8% $3.67

SKU: MC-0004

Categories:Monkey Cage, USB A, USB Breakout, USB Breakout boards

Description

Additional information

Applications

Support & Utility

Q & A

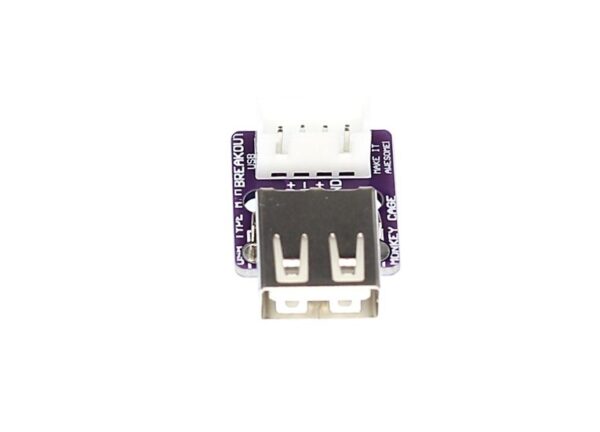

A USB A Female No Flange Vertical Header with Dupont Breakout Board is a small adapter PCB that provides easy access to the pins of a USB Type-A female connector. These boards are commonly used for prototyping, DIY electronics projects, and testing USB connections without needing to solder directly to a USB socket.

Specifications:

PCB: 18.6mm x 19.7mm x 1.54mm
Overall Size: 30.3mm x 19.7 x 9.7mm
Mounting Holes: M3 x 2
Breaks out the four main USB pins: XH2.54 Vertical
Pitch 2.54mm
VCC (5V) – power
D- (Data −)
D+ (Data +)
GND (Ground)
USB Connector:
Model: USB 2.0
Number of Contacts: 4P
Gender: Female
Mounting Type: Right Angle
Current Rating: 1.5A
Voltage Rating: 30V
Operating Temperature -25℃~+85℃
Connector Type Type-A
Connect-Disconnect Life 5,000 Cycles
Cable: XH2.54 to 4 Single Dupont
Length: 20cm
Connector Type: JST XH2.54 Dupont 2.54
Wire: UL-1007 AWG-26 PVC 7×0.12ts 1.3mm
Voltage Rating: 300v
Current Capacity (Amps): 2–3 A short-term, 1–2 A continuous.
Chassis wiring / free air 2.2–3 A
Bundled inside a cable/enclosure: 1–2 A
Short runs (<1 m), low ambient temp: ~3 A possible
Longer runs or continuous current: Keep ≤ 2 A to avoid overheating

Package Includes:

USB A Female No Flange Vertical Header with Dupont Breakout Board
