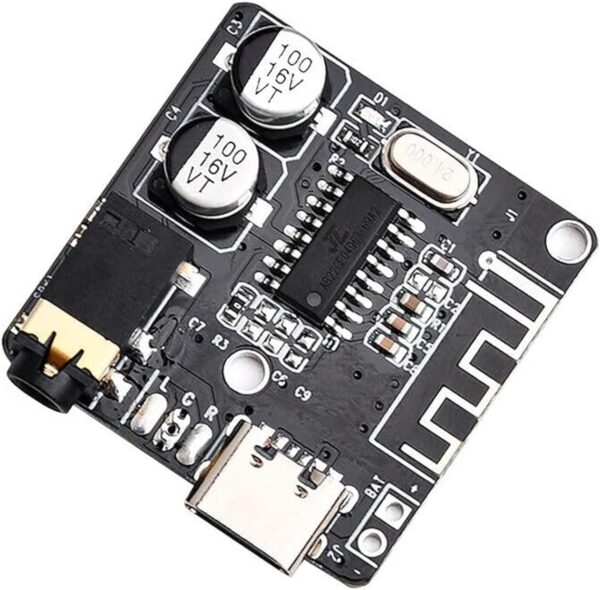

VHM-314 Type C Bluetooth 5.0 MP3 Decoder Board Audio Receiver

VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3

Name: VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3
SKU: TS-P1354
Availability: InStock

VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3 is a compact and versatile module designed for high-quality audio decoding and wireless streaming.

$8.95

5 in stock

This item: VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3

5 in stock

$8.95

MAX98357 I2S Audio Amplifier Module

1 × MAX98357 I2S Audio Amplifier Module

11 in stock

$7.99

XY-P15W Stereo Bluetooth Amplifier Board 10W-20W Module

1 × XY-P15W Stereo Bluetooth Amplifier Board 10W-20W Module

2 in stock

$10.95

XH-A157 PAM8403 Stereo audio amplifier

1 × XH-A157 PAM8403 Stereo audio amplifier

3 in stock

$6.95

VHM-314 Micro USB Bluetooth 5.0 Audio Receiver Board MP3

Mini Bluetooth 5.0 MP3 Decoder Board Audio Receiver

1 × VHM-314 Micro USB Bluetooth 5.0 Audio Receiver Board MP3

5 in stock

$8.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $8.50
Qty Discount	10 +	8% $8.23

SKU: TS-P1354

Categories:Amplifier modules, Bluetooth Modules

Description

Additional information

Applications

Support & Utility

Q & A

VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3. This compact and cost-effective Bluetooth 5.0 audio receiver module supports an automatic reconnect function. A micro USB or a 3.7V lithium battery can power it. With this module, you can easily convert your old speakers into wireless Bluetooth speakers.

After the power is turned on, the blue indicator lights up and enters Bluetooth mode.

The Bluetooth device is ready to pair is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the XY_BT searched by the mobile phone Bluetooth is the device name of the decoding board.

Click on the connection, and the decoder board prompts, “The Bluetooth device is connected successfully”, indicating that the decoder board and the mobile phone are connected successfully, and you can play music. As shown below

Specifications:

Mini Bluetooth 5.0 MP3 Decoder Board Audio Receiver
USB: Type C
Power Supply 3.7 – 5V
SNR 90dB
THD+N – 70dB
Crosstalk -86dB
DNR 91dB
Support Profile A2DP/AVCTP/AVDTP/AVRCP/HFP
Transmission Distance: 15m (Visible)

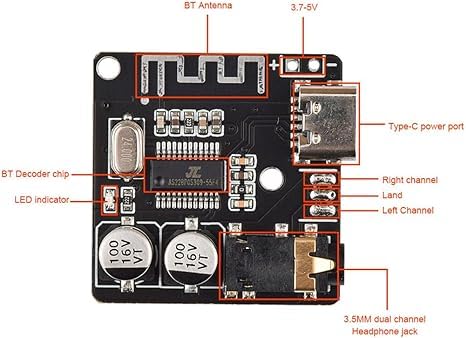

USB-powered Universal Micro USB 5V power supply
3.7 – 5V Supply Pad External 3.7 – 5V lithium battery power conversion
LED indicator Bluetooth mode long blue light
3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices
Size: 30x30mm

Package Includes:

VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3
