XH-W3001 Thermostat 12VDC NTC with LED Display

XH-W3001 Thermostat 12VDC NTC with LED Display

Name: XH-W3001 Thermostat 12VDC NTC with LED Display
SKU: TS-P892
Availability: InStock

XH-W3001 temperature sensors can measure temperature from -50°C to 100°C using the attached waterproof NTC10K Temperature probe provided for convenient. use

$7.95

5 in stock

This item: XH-W3001 Thermostat 12VDC NTC with LED Display

5 in stock

$7.95

GY-906 MLX90614 BAA Infrared thermometer Non-Contact

1 × GY-906 MLX90614 BAA Infrared thermometer Non-Contact

3 in stock

$20.95

MAX6675 Module + K Type Thermocouple Temperature Sensor

1 × MAX6675 Module + K Type Thermocouple Temperature Sensor

2 in stock

$10.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $7.55
Qty Discount	10 +	8% $7.31

SKU: TS-P892

Categories:Temperature, Thermostat

Description

Additional information

Applications

Support & Utility

Q & A

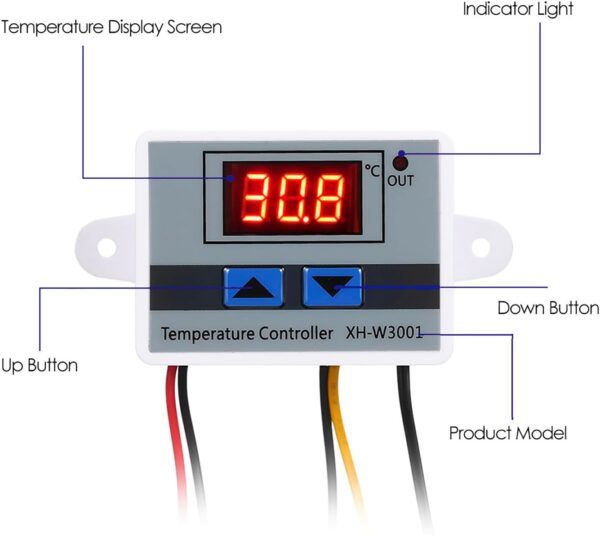

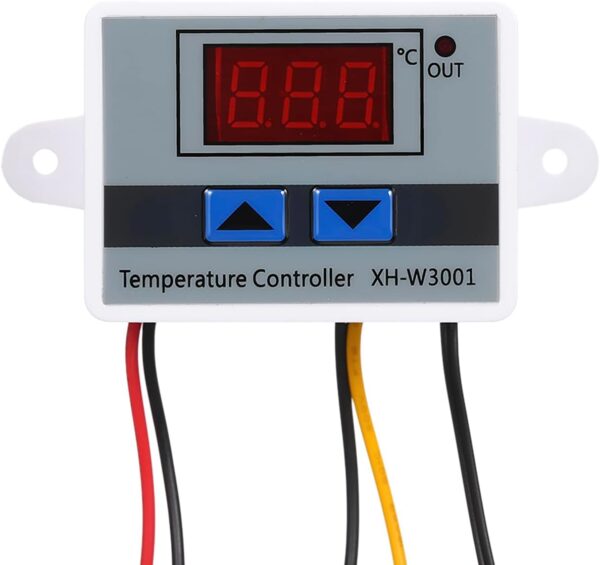

The XH-W3001 Thermostat 12VDC NTC with LED Display is a simple digital thermostat with an output relay that allows temperature control from -50°C to 110°C with a 0.1°C resolution. For example, heating can be connected to one output and cooling to another.

The thermostat’s set temperature will then be maintained by heating and cooling. The thermostat includes a resistive temperature sensor in a waterproof stainless steel housing with IP68 protection. The power supply is 12V DC.

Specifications:

Temperature Range: -50°C to 110°C
Operating Voltage: 12VDC
Operating Mode(s): Heating or Cooling
Load Power: 120W (12V)
Output Current: 10A (max)
Input Type: 10K NTC Thermistor, encased in 1m waterproof.
NTC Housing: (stainless steel probe)
Temperature Control Accuracy: 0.2°C
Temperature Sensing Accuracy: 0.1°C
Housing Color: White
Mounting DIN rail or wall-mount using screws
Housing Material Plastic: IP22-rated
Dimensions: 60x45x31mm
Weight: 50 g

Package Includes:

XH-W3001 Thermostat 12VDC NTC with LED Display
