V3 Engraver 3D Printer CNC Shield Expansion Board A4988 Driver

Name: V3 Engraver 3D Printer CNC Shield Expansion Board A4988 Driver
SKU: TS-P1504
Availability: InStock

CNC Shield V3.0 Extension Board+4Pcs A4988 -DRV8825 compatible with stepping driver, GRBL 0.8 compatible, open source firmware, converts G-code commands into stepping signals.

$37.95

1 in stock

This item: V3 Engraver 3D Printer CNC Shield Expansion Board A4988 Driver

1 in stock

$37.95

AT2100 Stepper Motor Driver

1 × AT2100 Stepper Motor Driver

5 in stock

$9.95

60T GT2 8mm bore 6mm Belt Timing Pulley

1 × 60T GT2 8mm bore 6mm Belt Timing Pulley

6 in stock

$8.35

DVR8825 Stepper Motor Driver

1 × DVR8825 Stepper Motor Driver

3 in stock

$7.15

20T GT2 6mm bore 6mm Belt Timing Pulley

1 × 20T GT2 6mm bore 6mm Belt Timing Pulley

5 in stock

$6.35

Title	Qty	Discount
Qty Discount	4 - 9	5% $36.05
Qty Discount	10 +	8% $34.91

SKU: TS-P1504

Category:Robotics, CNC, Printer Parts

Description

Additional information

Applications

Support & Utility

Q & A

This kit combines a CNC motion control expansion board (V3.0) designed to mount on an Arduino Uno with four A4988 stepper motor drivers. It lets your Arduino send precise stepping instructions to up to four stepper motors, which are the standard actuators for CNC machines, 3D printers, laser cutters, and similar motion systems.

Specifications:

CNC Shield Expansion Board V3.0:
Operating Voltage: 5V
Digital I/O Pins: 14 (Including 6 with PWM Capability)
I-I/O Pin Output Current: 40mA Max
3.3V Output Current: 150mA Max
Clock speed: 16MHz
A4988 Driver:
Colour: Red
Size: 20 x 15mm / 0.78 x 0.59″
Thermal Shutdown Circuit: Yes
Cross Current Protection: Yes
Ground Fault Protection: Yes
Short Circuit Protection: Yes
Compatible Logic Voltage: 3.3V and 5V
Five Step Modes: Full, 1/2, 1/4, 1/8 and 1/16 Mix with slow current attenuation model.

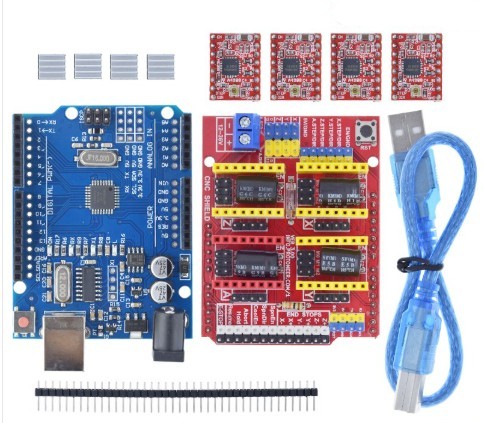

Package Includes:

1x CNC Shield V3.0 Board
4x A4988 Drivers
4x Heat Sinks
1x Arduino Uno R3 & USB Cable
