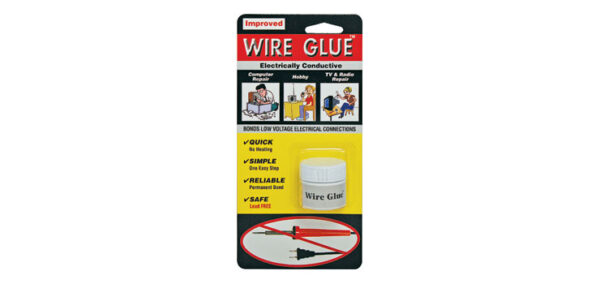

Wire Glue Electrically Conductive 9ml

Name: Wire Glue Electrically Conductive 9ml
SKU: TS-CEM029
Availability: OutOfStock

Wire Glue is only for twisted wires and similar non-twistable wires, not for PCB-level use. It will provide a mechanical join and a conductive coating to protect the exposed conductors.

$14.50

Out of stock

Want to be notified when this product is back in stock?

Use this e-mail address to send me availability alerts and updates.

Title	Qty	Discount
Qty Discount	4 - 9	5% $13.78
Qty Discount	10 +	8% $13.34

SKU: TS-CEM029

Categories:Lubricants, Tape & Adhesives, Tools

Description

Additional information

Applications

Support & Utility

Q & A

Wire Glue Electrically Conductive is a micro-carbon-based conductive glue that connects wires in one simple step, then conducts electricity. This is all without any soldering or heating, plus unlike solder, it’s lead-free.

Specifications:

Lead-Free and No Heating Involved
For both AC and DC low-voltage circuits
Drying Time: To touch: 2 hours; Through: 12 to 48 hours (Depending upon temperature, relative humidity, coating thickness, and substrate)
Density: 0.6 grams per cubic centimetre
Application Temperature Range: 40°F (4°C) to 110°F (43°C)
Service Temperature Range: 0°F (-17.8°C) to 180°F (82.2°C) constant; -20°F (-29°C ) to 200°F (93°C) intermittent
Conductivity: 13.16 Ohms per cubic centimetre
Net 9ml of Wire Glue per jar
Safety Data Sheet

Package Includes:

Wire Glue Electrically Conductive
