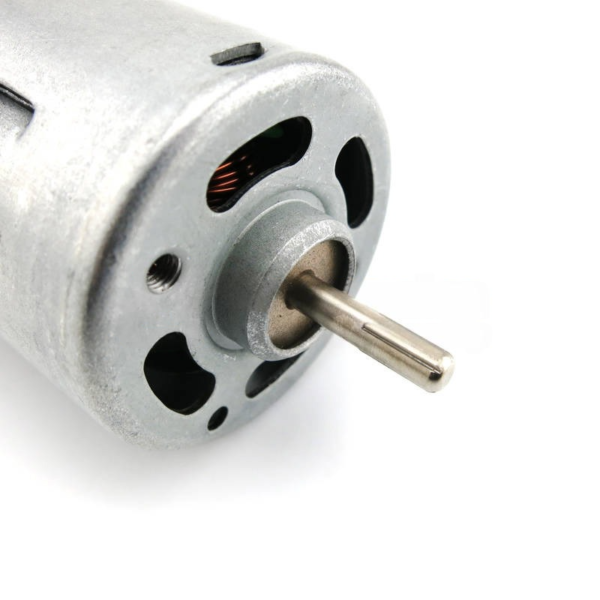

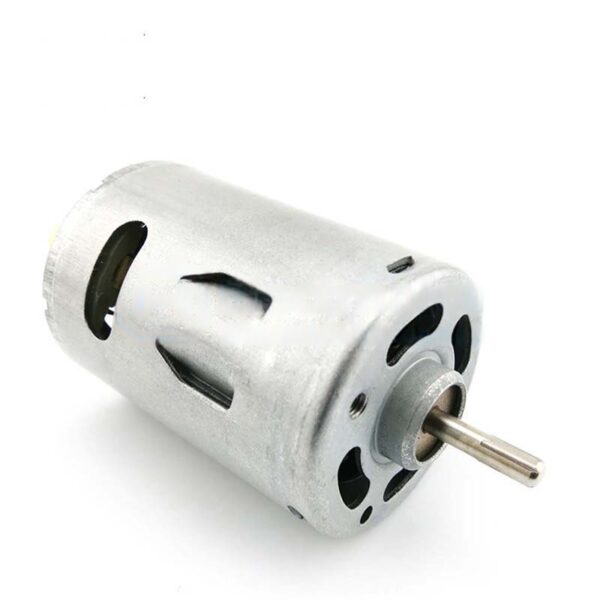

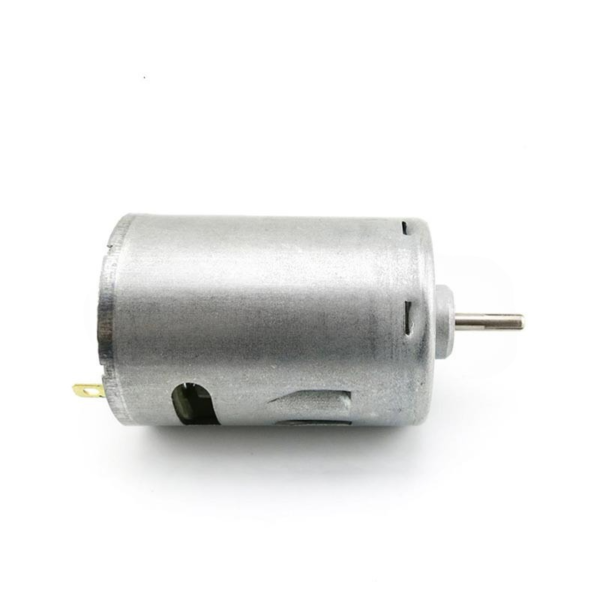

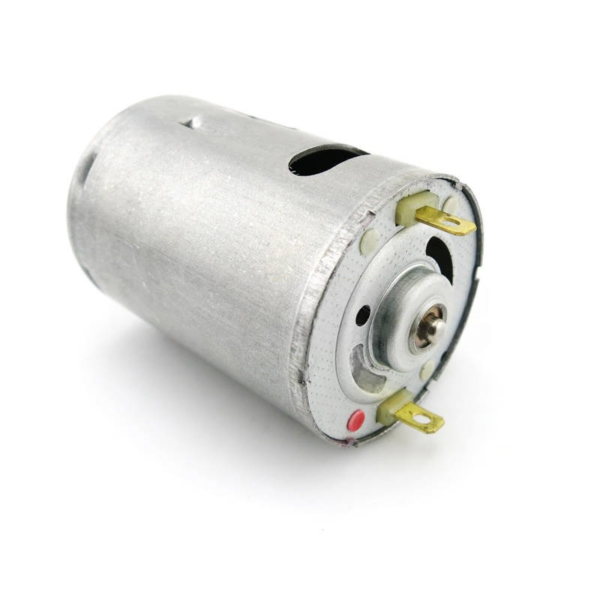

540 12V Brushed DC Motor

Name: 540 12V Brushed DC Motor
SKU: TS-M138
Availability: InStock

Sale!13%

The 540 miniature DC motor offers an excellent balance of power, size, and simplicity. With proper power management and mechanical coupling, it can be a versatile and effective motor for various high-speed, compact applications.

4 in stock

This item: 540 12V Brushed DC Motor

4 in stock

TT DC Motor Bracket

1 × TT DC Motor Bracket

18 in stock

$2.95

MG90S 180 degrees High Torque Metal Gear Micro Servo

1 × MG90S 180 degrees High Torque Metal Gear Micro Servo

11 in stock

$13.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $8.22
Qty Discount	10 +	8% $7.96

SKU: TS-M138

Categories:Motors - Servo's, NEMA 23 57mm Series Brackets, Stepper Motor & Accessories

Description

Additional information

Applications

Support & Utility

Q & A

The 540 miniature DC motor is a widely used brushed DC motor, known for its compact size, high rotational speed, and affordability. Originally popularized through use in remote-controlled (RC) vehicles, the 540 motor has since found applications across a wide range of DIY electronics, robotics, and hobbyist projects.

Specifications:

Model: 540 12V Brushed DC Motor
Rated voltage: 12v
Voltage range: 6- 12v
6V: current 0.4A, 5000 rpm
12V: current 0.6A, 10000 rpm
Motor length: 49.8mm(without Output Shaft)
Motor diameter: 35.8mm
Step diameter: 13mm
Step height: 4.5mm
Fixed aperture: M3
Fixed hole spacing: 25 mm
Shaft length: 16.5mm
Shaft diameter: 3.17mm

Package Includes:

540 12V Brushed DC Motor
