5MP Raspberry Pi Camera Module Rev 1.3

Name: 5MP Raspberry Pi Camera Module Rev 1.3
SKU: TS-P1431
Availability: InStock

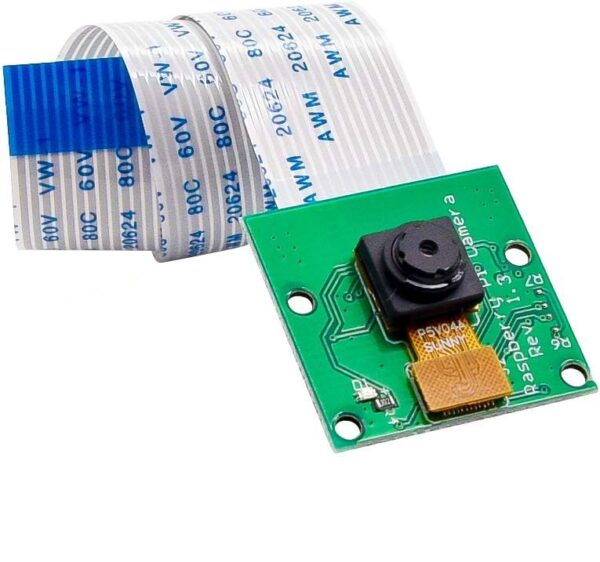

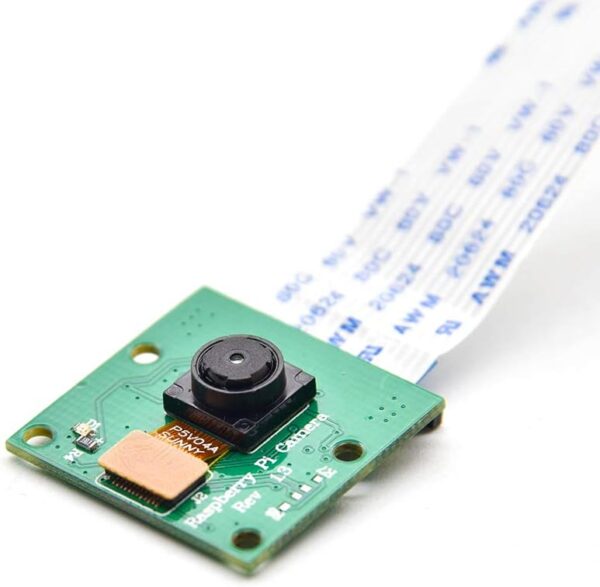

5MP Raspberry Pi Camera Module Rev 1.3. It utilises a 5-Megapixel sensor (OmniVision OV5647) with a still image Resolution of up to 2592 × 1944 pixels.

$21.95

2 in stock

This item: 5MP Raspberry Pi Camera Module Rev 1.3

2 in stock

$21.95

8 value 16pcs Three Terminal Regulator Assortment Kit

1 × 8 value 16pcs Three Terminal Regulator Assortment Kit

3 in stock

$8.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $20.85
Qty Discount	10 +	8% $20.19

SKU: TS-P1431

Categories:Power Management ICs, Voltage Regulators

Description

Additional information

Applications

Support & Utility

Q & A

The Raspberry Pi Camera Module Features a 5MP OmniVision OV5647 sensor, capable of Capturing 2592×1944 still images and 1080p video at 30 frames per second (fps). It connects via a 15-pin CSI interface, is compact and lightweight, and features a fixed-focus lens, making it ideal for basic photography, video streaming, and Embedded Raspberry Pi projects.

Specifications:

Shot:1/4 5M
Aperture:2.9
Focal length:3.29
FOV:72.4
Pixel Count: 2592 x 1944
Pixel Size: 1.4 x 1.4 um
Lens: f=3.6 mm, f/2.9
Sensor type: Omni Vision OV5647 Colour CMOS QSXGA (5-megapixel)
Sensor size: 3.67 x 2.74 mm (1/4″ format)
Angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Video: 1080p at 30 fps with codec H.264 (AVC)
Up to 90 fps Video at VGA
Interface: 15-pin MIPI Camera Serial Interface (CSI)

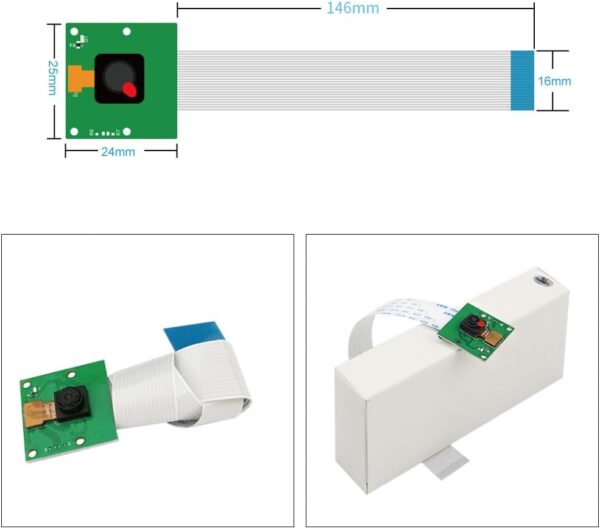

Dimensions: 20mm x 25mm x 9mm (Approx.)

Package Includes:

5MP Raspberry Pi Camera Module Rev 1.3
Cable
