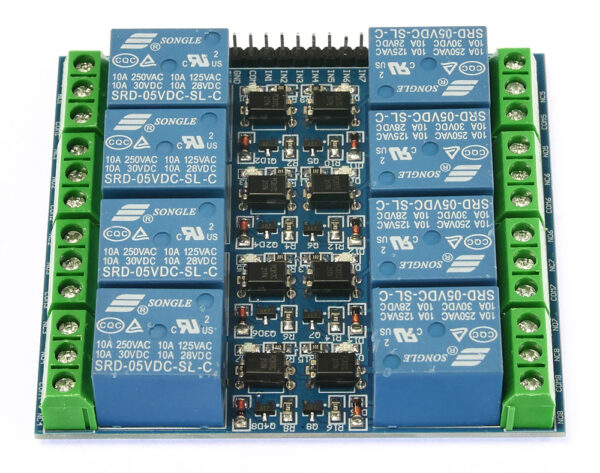

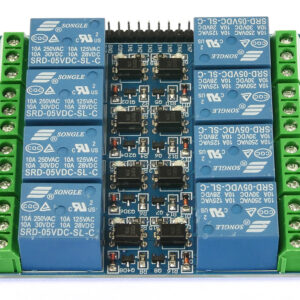

5V 8-Channel 10A Opto Isolated Relay Module

Name: 5V 8-Channel 10A Opto Isolated Relay Module
SKU: TS-P915
Availability: InStock

Relays are used when a Circuit must be controlled by a separate Low-Power signal or when several circuits must be controlled by one signal.

$14.95

2 in stock

This item: 5V 8-Channel 10A Opto Isolated Relay Module

2 in stock

$14.95

5V Optocoupler Isolated Relay Modules 4 way

1 × 5V Optocoupler Isolated Relay Modules 4 way

5 in stock

$6.95

TCA9548A 1-to-8 I2C multiplexer

1 × TCA9548A 1-to-8 I2C multiplexer

14 in stock

$7.95

GY-ADS1115 16Bit 4 Channel ADC with Pro Gain Amplifier

1 × GY-ADS1115 16Bit 4 Channel ADC with Pro Gain Amplifier

18 in stock

$8.15

GY-4725 I2C DAC Breakout – MCP4725 digital-analog converter module

1 × GY-4725 I2C DAC Breakout – MCP4725 digital-analog converter module

5 in stock

$6.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $14.20
Qty Discount	10 +	8% $13.75

SKU: TS-P915

Categories:Electronic modules, Optocoupler Isolated Relay Modules

Description

Additional information

Applications

Support & Utility

Q & A

5V Optocoupler Isolated Relay Modules 8-channel 5V 10A opto-isolated relay module can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM, or any other microcontroller operating at 5V.

Specifications:

Channels: 8 Relays
Relay Voltage: 5V
Relay Coil Current: 30mA at 5V per relay
Relay Output Current: 10A at 250VAC, 10A at 20VDC
Input Type: Opto Isolated inputs
Channel LEDs: LEDs to indicate the state of each relay
Module dimension: 80mm x 71mm
Diameter of mounting holes: 3 mm

Please note:

Note: Maximum contact voltage depends on the type of load

The relays used are usually Songle or Tongling, both of good quality and exact specifications

Package Includes:

5V 8-Channel 10A Opto Isolated Relay Module

	Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc
	Hackaday serves up Fresh Hacks Every Day from around the Internet.
	Instructables is a community for people who enjoy making things. Explore, share, and do your next project with us!
	Where the world builds software
	Raspberry Pi Foundation: What would you like to make today?
	Arduino’s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
	Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:	There may be slight size deviations due to manual measurement, different measuring methods, and tools. The picture may not reflect the item’s actual colour due to different lighting, angles, and display monitors.

Weight	0.135 kg
Dimensions	15 × 5.5 × 1.9 cm
Model	1 Channel, 2 Channel, 4 Channel, 6 Channel, 8 Channel

Product Applications

This is an 8 Channel 5V Relay interface board that can control various appliances and other equipment with high current. It can be controlled directly by Microcontroller(Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

Current Product Support

SKU	Product	Type	Download/View
TS-P915	5V 8-Channel 10A Opto Isolated Relay Module - SUBMINATURE HIGH POWER RELAY	Datasheet	Download
TS-P915	5V 8-Channel 10A Opto Isolated Relay Module - EL817_transoptor 2	Datasheet	Download
