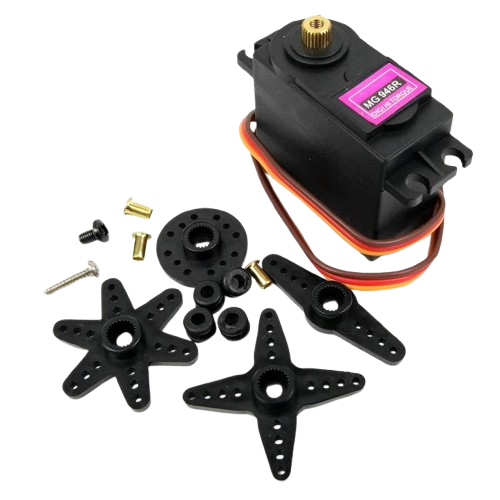

MG946R Metal Gear Servo 90° Rotation

Name: MG946R Metal Gear Servo 90° Rotation
SKU: TS-M147
Availability: InStock

This servo features a durable Metal gear train, which significantly enhances its strength and reliability compared to plastic gear counterparts.

$11.99

4 in stock

This item: MG946R Metal Gear Servo 90° Rotation

4 in stock

$11.99

TT DC Motor Bracket

1 × TT DC Motor Bracket

18 in stock

$2.95

MG90S 180 degrees Plastic Gear High Torque Micro Servo

1 × MG90S 180 degrees Plastic Gear High Torque Micro Servo

5 in stock

$11.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $11.39
Qty Discount	10 +	8% $11.03

SKU: TS-M147

Categories:60 Degree Rotation, 90 Degree Rotation, Motors - Servo's, Servo motors

Description

Additional information

Applications

Support & Utility

Q & A

The MG946R Metal Gear Servo offers ±90° rotation with high torque up to 13 kg·cm at 6V. Featuring durable metal gears and dual ball bearings, it’s ideal for robotics, RC vehicles, and applications needing strong, reliable motion control.

Specifications:

90° Rotation
Weight: 55 g
Dimension: 40.7 x 19.7 x 42.9 mm approx.
Stall torque: 10.5 kgf/cm at 4.8V, 13 kgf/cm at 6V
Operating speed: 0.20 s/60º at 4.8V, 0.17 s/60º at 6V
Operating voltage: 4.8V – 7.2V
Running Current 170Ma
Stall Current 1.2A at 6V
Dead band width: 5 µs
Stable and shock-proof double ball bearing design
Gear Type: All Metal Gears
Servo Plug: JR (Fits JR and Futaba)
Connector Wire: Heavy Duty, 11.81″ (280mm)
Temperature range: 0 ºC – 55 ºC

Package Includes:

MG946R Metal Gear Servo 90° Rotation
