Quad GPIO Expander For Raspberry Pi Pico, Four Sets Of Male Headers For Connecting More Expansion Modules, USB Power Input Connector

Four Sets Of Standard Raspberry Pi Pico GPIO Male Headers, USB-Powered Support

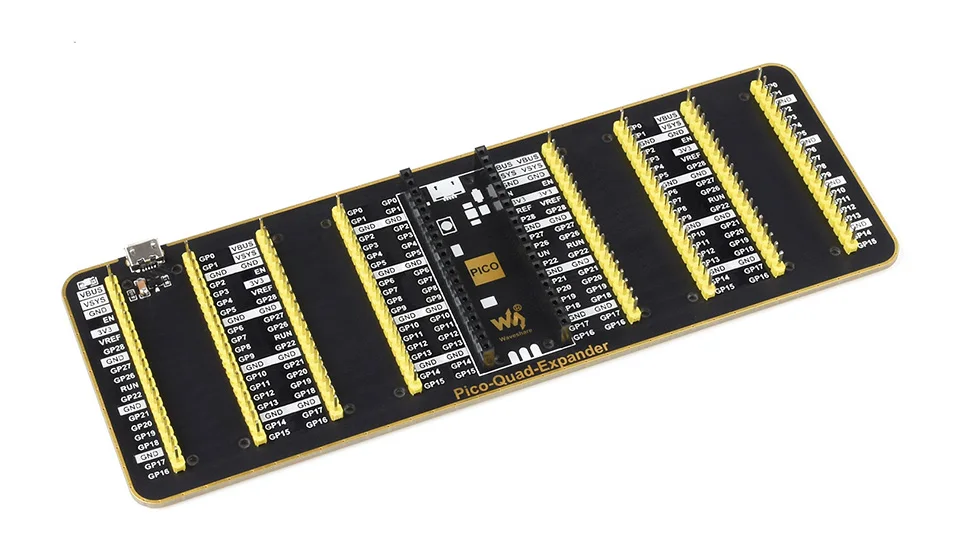

Quad GPIO Expander for Raspberry Pi Pico
Features At A Glance
  • Raspberry Pi Pico female header directly attaching Pi Pico (if male header soldered), or just through jumper wires.
  • Four sets of 2×20 male header allow connecting more Raspberry Pi Pico expansion modules.
  • USB power input connector ensures sufficient power supply for multiple expansion modules.
  • Clear pinouts are labelled on the front side, easy to use.
  • Immersion gold process, beautiful & practical, stunning aesthetic looking.
Raspberry Pi Pico Header Compatibility
Center Female Pin Header For Direct Attaching The Raspberry Pi Pico
Quad GPIO Expander for Raspberry Pi Pico 1
Four Sets Of 2×20 Male Header allows Connecting More Raspberry Pi Pico Expansion Modules
Extra USB Connector For External Power Supply
Quad GPIO Expander for Raspberry Pi Pico attached look
Would you mind making sure there are no pin conflicts between the modules you want to use together before connecting?
Raspberry Pi Pico and expansion modules are NOT included.
Immersion Gold Process Black Base Panel, White Pinout Labels, Golden Rounded Outline, Stunning Aesthetic
Quad GPIO Expander for Raspberry Pi Pico layout
Outline Dimensions
Outline Dimensions



Package included: 1x  Quad GPIO Expander for Raspberry Pi Pico

Check out our On Sale and Clearance Items

Development  Resources: demo codes, schematics, datasheets, etc

Raspberry Pi from Wikipedia
  • Raspberry Pi (/paɪ/) is a series of small single-board computers (SBCs) developed in the United Kingdom by the Raspberry Pi Foundation in association with Broadcom.
  • The Raspberry Pi project initially leaned towards teaching introductory computer science in schools and developing countries.
  • The original model became more popular than anticipated, selling outside its target market for uses such as robotics.
  • It is widely used in many areas, such as for weather monitoring, because of its low cost, modularity, and open design.
  • It is typically used by computer and electronic hobbyists due to its adoption of HDMI and USB devices.



     Hackaday serves up Fresh Hacks Every Day from around the Internet.


Instructables is a community for people who like to make things. Explore, share, and do your next project with us!



     Where the world builds software

    Raspberry Pi Foundation What would you like to make today?

    Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.


Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.



Notes:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.

Weight .055 kg
Dimensions 17.7 × 6.2 × 1 cm
