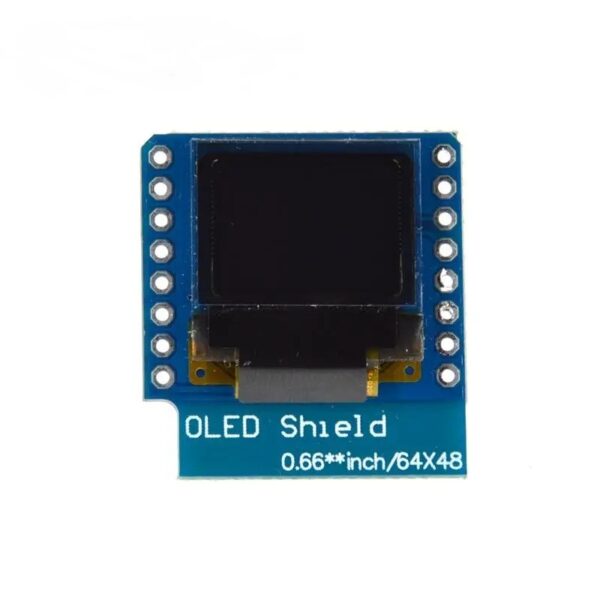

WeMos OLED 64 x 48 Pixel 0.66 Shield

Name: WeMos OLED 64 x 48 Pixel 0.66 Shield
SKU: TS-S047
Availability: InStock

Designed for integrators and designers of electronic circuits and RC. High-quality electronic components. OLED viewfinder WeMos D1 64×48 I2C / IIC TFT ESP8266 compatible NodeMcu LUA.

$9.25

4 in stock

This item: WeMos OLED 64 x 48 Pixel 0.66 Shield

4 in stock

$9.25

Mega 2560 Pro Mini Board with CH340 Micro USB

Mega2560 Pro Mini ATmega2560-16AU USB CH340G

1 × Mega 2560 Pro Mini Board with CH340 Micro USB

7 in stock

$23.95

Ethernet W5100 shield

1 × ~~Ethernet W5100 shield~~

Out of stock

$19.95

WeMos D1 mini Pro ESP8266 (V3.0)

1 × WeMos D1 mini Pro ESP8266 (V3.0)

28 in stock

$7.95

Pro Micro Atmega32U4 Replace Leonardo - 5V/16MHz -Mini-USB

Pro Micro Atmega32U4 - 5V/16MHz Replace ATmega328 Pro Mini Leonardo USB Pro Micro Leonardo

1 × Pro Micro Atmega32U4 Replace Leonardo - 5V/16MHz -Mini-USB

1 in stock

$10.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $8.79
Qty Discount	10 +	8% $8.51

SKU: TS-S047

Categories:Arduino Boards, Microcontroller Development boards, TFT LCD Display, WeMos D1

Description

Additional information

Applications

Support & Utility

Q & A

The WeMos OLED 64 x 48 Pixel 0.66 Shield is a tiny display. Using OLED display technology means not only that the display is very bright and clear, with a high contrast ratio, but also that it consumes much less power than other display technologies, such as backlit LCD. It is also evident in both total darkness and in bright light.

To interface with the module, the display uses a serial I2C interface that requires just two data pins. On-board reset circuitry means there is no need for an additional reset pin.

Specifications:

Screen Size: 64×48 pixels (0.66” Across)
Operating Voltage: 3.3V
Driver IC: SSD1306
Interface: IIC(I2C)

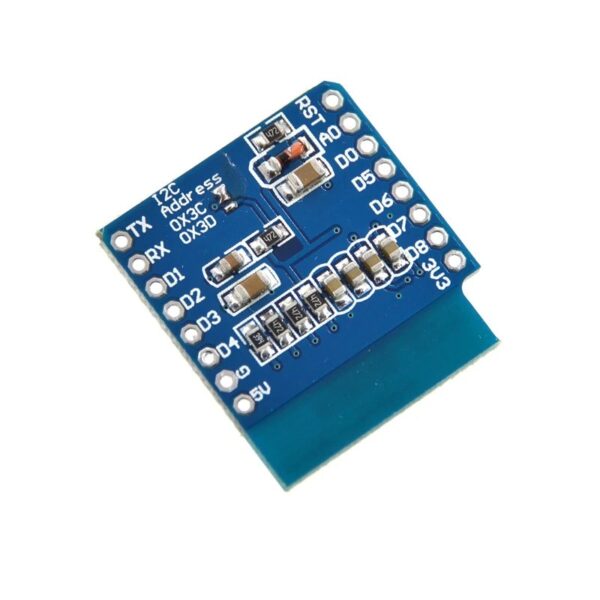

IIC Address: 0x3C or 0x3D
Size: 2.8 x 2.6 x 0.3 cm

Warning: all I/O are designed to be 3.3V Compliant only.

Package Includes:

1 x WeMos OLED 64 x 48 Pixel 0.66 Shield
2 x pin male header 8-pin
