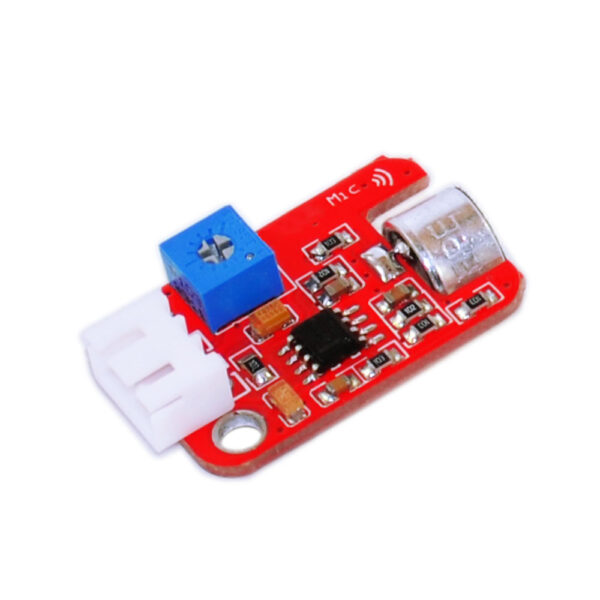

LM358 Microphone Sound Detection Module with Xh2.54 3p Socket

LM358 Microphone Sound Detection Module with Xh2.54 3p Socket

Name: LM358 Microphone Sound Detection Module with Xh2.54 3p Socket
SKU: TS-P189
Availability: InStock

This module detects ambient sound levels using a high-sensitivity electret microphone, amplifies the signal using an LM358 operational amplifier, and, depending on the model, provides an analog output (and sometimes a digital output).

$5.95

4 in stock

This item: LM358 Microphone Sound Detection Module with Xh2.54 3p Socket

4 in stock

$5.95

LJ12A3-4-Z/BY PNP Inductive Proximity Sensor Switch DC 6V-36V

1 × LJ12A3-4-Z/BY PNP Inductive Proximity Sensor Switch DC 6V-36V

12 in stock

$9.15

HC-SR04 Ultrasonic Distance Measuring Sensor Module

1 × HC-SR04 Ultrasonic Distance Measuring Sensor Module

44 in stock

$3.99

GY-346 ADXL346 High Precision sensor module

1 × GY-346 ADXL346 High Precision sensor module

4 in stock

$7.55

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-P189

Categories:Interactive Sensors, Sound Microphone

Description

Additional information

Applications

Support & Utility

Q & A

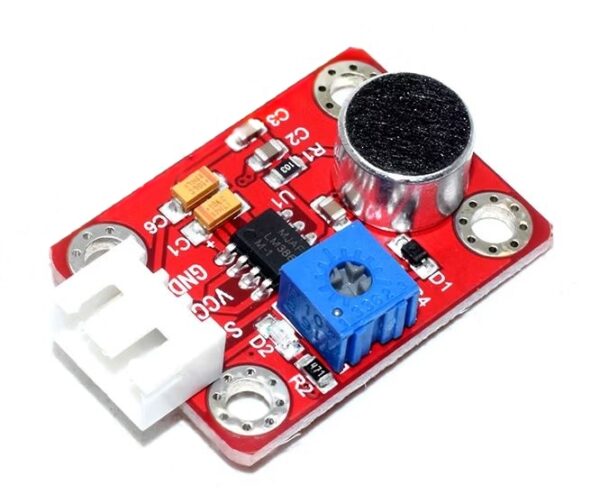

The LM358 Microphone Sound Detection Module with Xh2.54 3p Socket is a small electronic module often used in DIY electronics, robotics, and Arduino/Raspberry Pi projects to detect sound or voice activity.

Specifications:

Main IC: LM393 comparator
Operating voltage 3.3V ~ 5.5V
Microphone sensitivity -42 ±3 db
Current consumption ~0.5mA
Board Dimensions 33mm x 22mm x 9.5mm
Interface: Anti-reverse interface
Location hole size: 3mm in diameter
Control signal: digital signal
Socket Type: XH2.54 3-pin (VCC, GND, OUT)

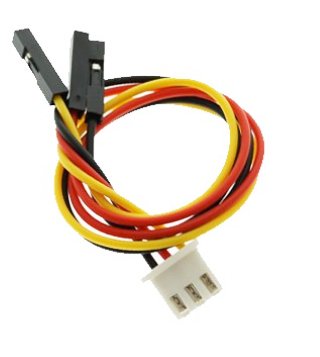

Wire length: 150mm

Package Includes:

LM358 Microphone Sound Detection Module with Xh2.54 3p Socket
