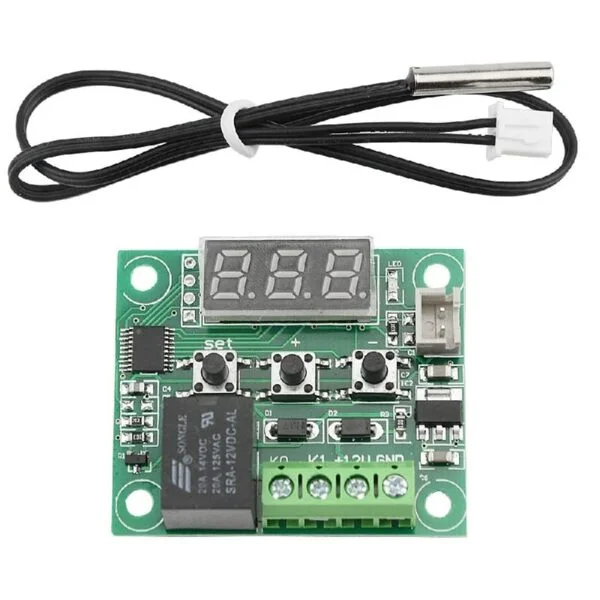

XH-W1209 Digital Thermostat Temperature Controller is a low-cost yet highly functional self-contained temperature controller module for heating and cooling applications.

This module measures and displays the temperature and allows you to control power to most electrical equipment based on that temperature.

A single output relay can be turned ON or OFF as temperature rises or lowers past the thermal threshold you set.

You can also set a temperature hysteresis, relay activation delay and thermal limits for the module’s operation.

Specifications:

LED Display Colour: Blue (but we can order Red in)
Temperature Control Range: -55 °C to +120 °C
Resolution at -9.9 to 99.9: 0.1 °C
Resolution at all other temperatures: 1 °C
Measurement Accuracy: 0.1 °C
Control Accuracy: 0.1 °C
Refresh Rate: 0.5 Seconds
Input Power (DC): 12V
Measuring Input: NTC (10K 0.5%)
Waterproof Sensor: 0.5M cable
Output: 1 Channel Relay Output, Capacity: 20A
Power Consumption:
- Static Current: <=35mA
- Operating Current: <=65mA
Environmental Requirements:
- Temperature: -10 ~ 60 °C
- Humidity: 20-85%
Dimensions: 48mm x 40mm x 14mm (1.9″ x 1.6″x 0.6″) (LxWxH)

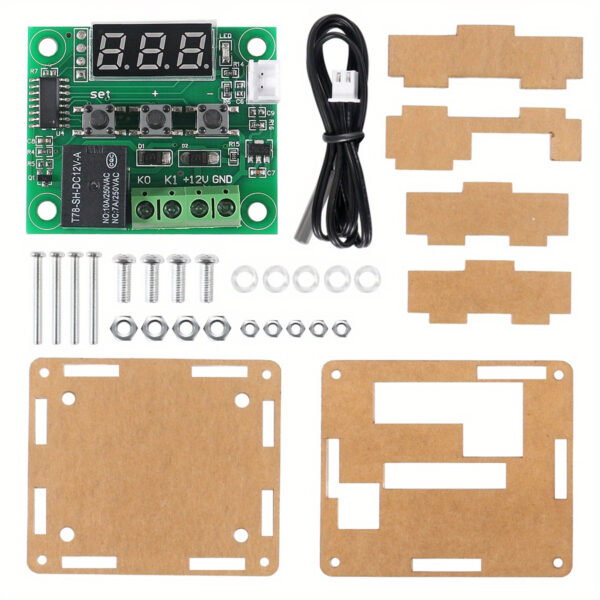

Package Includes:

XH-W1209 Digital Thermostat Temperature Controller
